FG Series

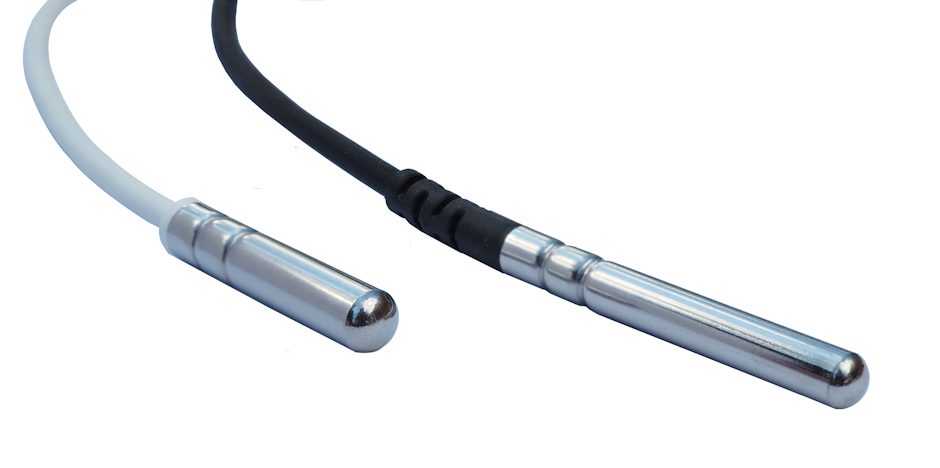

• Fully TPE-encapsulated NTC temperature sensor with stainless steel pocket
• Protection class IP68
• Continuous operating temperature range
  -40°C to +105°C, or -40°C to +150°C
• Sensor head diameter: selectable 4,0 mm, 5,0 mm, or 6,0 mm
• Sensor head length: selectable from 25 mm to 100 mm
• Insulation resistance 1,5 kVAC
• Lead wires: sheathed cable (twisted pair) with TPE or TPE-E insulation,
  cross-sections of AWG 28 (0,09 mm²) or AWG 24 (0,23 mm²)
• Cable length from 0,1 m to 50 m
• Resistance-Temperature characteristic:
  extensive range of standard and customer specific characteristics available
• Glass or epoxy resin encapsulated NTC sensor elements
• Nominal resistance R(25°C): selectable in the range of 1 kΩ to 1 MΩ,
  with accuracy starting at ±1%
• Calibration points deviating from 25°C are available, e.g., 0°C, 50°C, and 90°C
• B-values in the range of 3,100 K to 5,000 K
