FT Series

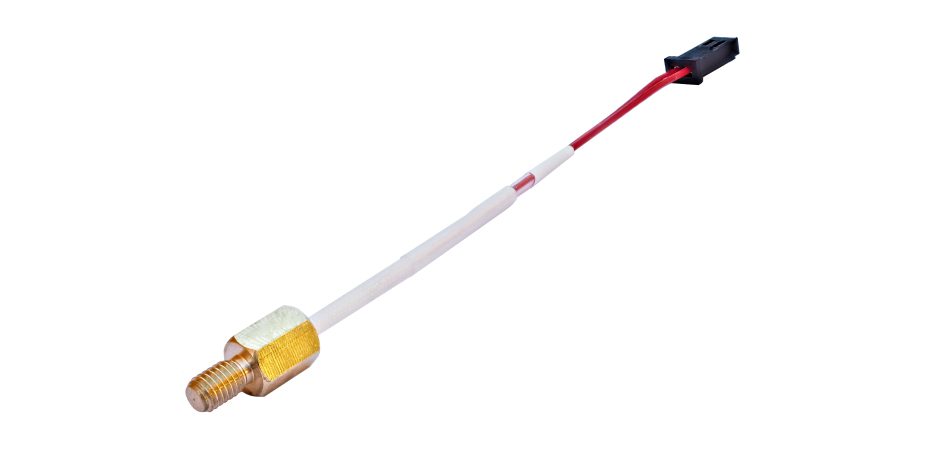

  • Fully encapsulated NTC temperature sensors with M4 or M5 threads
  • Continuous operating temperature range: -40°C to +200°C
  • The NTC sensing element is positioned at the tip of the threaded stem
  • The sensing element is glass-encapsulated and fully potted
  • Robust construction with intimate, internal electrical connections and strain relief for the connecting cable
  • Insulation strength 1,5 kVAC
  • Lead wires:
    single conductors insulated with PFA, FEP, or PTFE,
    cross-section approximately 0,23 mm² (AWG 24),
    rated voltage up to 600 V, maximum temperature up to 260°C
  •  Length of the lead wires: up to 5.000 mm
  • Resistance-temperature characteristic curves: extensive standard and custom options
  • Nominal resistance R(25°C): selectable in the range from 1 kΩ to 1 MΩ,
    accuracy starting from ±1%
  • Calibration points available from 25°C, e.g., at 0°C, 100°C, and 150°C
  • B-values in the range of 3.100 K to 5.000 K
