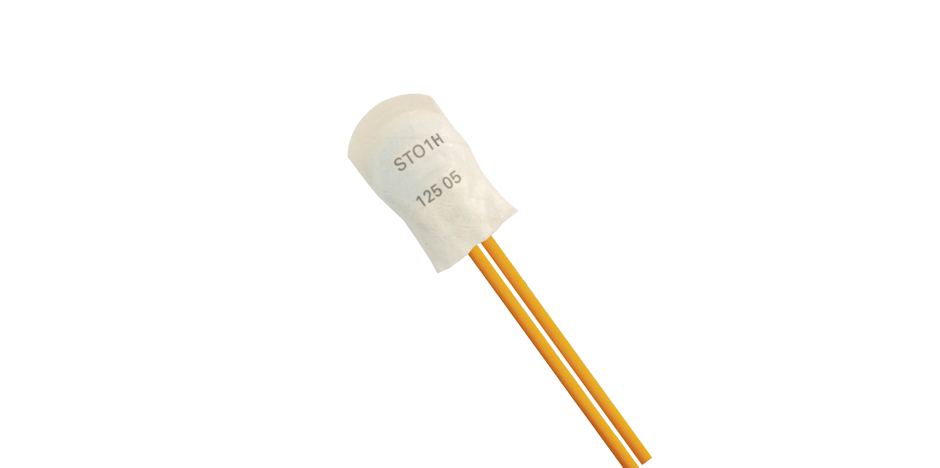

ST01H Series

  • Temperature limiter, with electrical self-holding contact, excellent for motor and winding protection, and a large variety of appliances
  • Contact form: Single pole, single throw; open on temperature rise
  • Snap action device; quick break/quick make switching action
  • Rated load:
    6,3 A 250 VAC 1.000 cycles
  • Calibration OFF temperature selectable
    from +60°C to +180°C in increments of 5°C
  • Factory preset fixed calibration temperature
  • Calibration tolerance: ±5 K
  • Maximum sensor head temperature of +180°C
  • Low current sensitivity, the bimetallic element does not carry the circuit current
  • Termination: Lead wire, stranded wire,
    cross–section 0.2 mm² (AWG 24), 0.3 mm² (22 AWG) or 0.6 mm² (20 AWG),
    XLPE, silicone, FEP or PFA insulation up to 250°C or 600 V nominal voltage
  • Approvals: VDE, UL, C-UL
