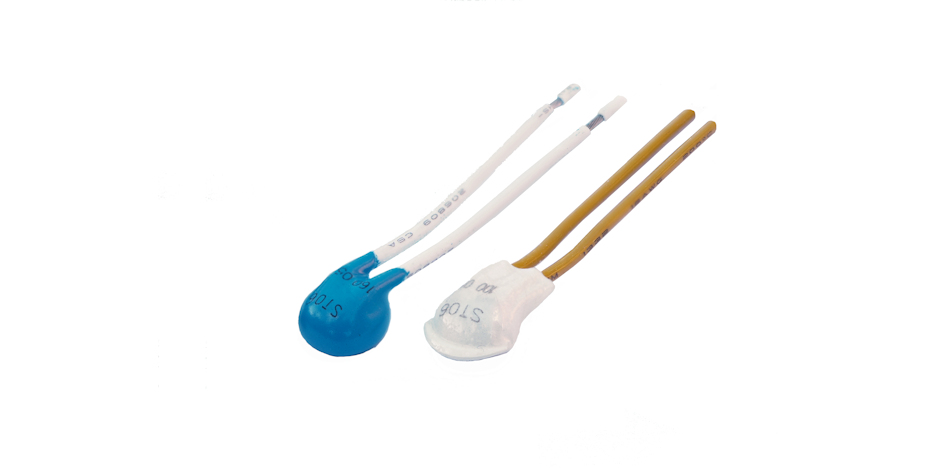

ST06 Series

  • Temperature limiter,
    for temperature monitoring, can be used as winding protection in electric motors or transformers and as a protective device in a variety of electrical appliances
  • Compact and robust switch head
  • Contact form: single pole, open on temperature rise, snap action
  • Rated load
    10 A 250 VAC (resistive load)
    6,3 A 250 VAC (inductive load)
    40 A 24 VDC (resistive load)
  • Insulated version of the electrical alive metal housing
    with insulation cap, sleeve or insulation of the switch head with epoxy resin
  • Calibration temperature selectable from +60°C to +200°C, switching temperature pre-set at the factory,
    calibration tolerance: ±5 K (standard), differential: approx. 70% the selected calibration OFF temperature
  • Maximum switch head temperature +200°C
  • Low self-heating, as the bimetallic sensor element is not carrying current
  • Lead wires:
    insulated stranded wire in accordance to UL,
    customized,
    standard conductor cross-section AWG 18 (approx. 1.0 mm²),
    insulation FEP (200°C, 300 V), PFA (250°C, 600 V), silicone (200°C, 600 V) or XLPE (150°C, 300 V)
  • Approvals: VDE, UL, cUL
