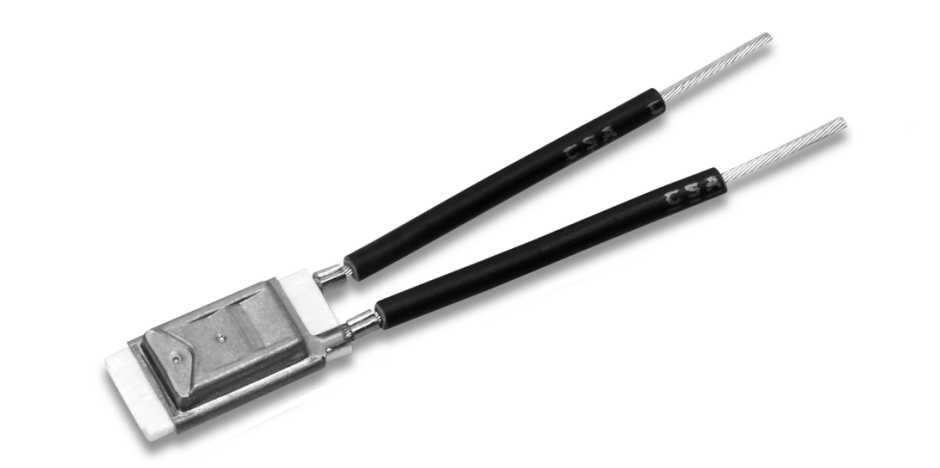

JS Series

• Temperature limiter (self-holding)
  Under fault condition it opens the circuit and holds it open using an electric heat source until power is removed
• Contact form: Single pole, single throw; open on temperature rise (self-holding)
• Snap action device; quick break/quick make switching action
• Rated load:
  13 A 250 VAC (resistive load)
  5 A 250 VAC (inductive load)
  15 A 120 VAC
• Calibration OFF temperature selectable from +50°C to +160°C in 1°C increments
• Compact design with completely integrated heating resistance
• Factory preset fixed calibration temperature
• Calibration temperature tolerance customizable from ±5 K to ±10 K
• Maximum sensor head temperature of +180°C
• Bimetallic element carries the circuit current;
  current sensitivity can be customized using the specific resistance of the bimetal
• Integrated crimping connectors
• Customization of the lead wire and insulation is possible
• Approvals: VDE, UL, C-UL
