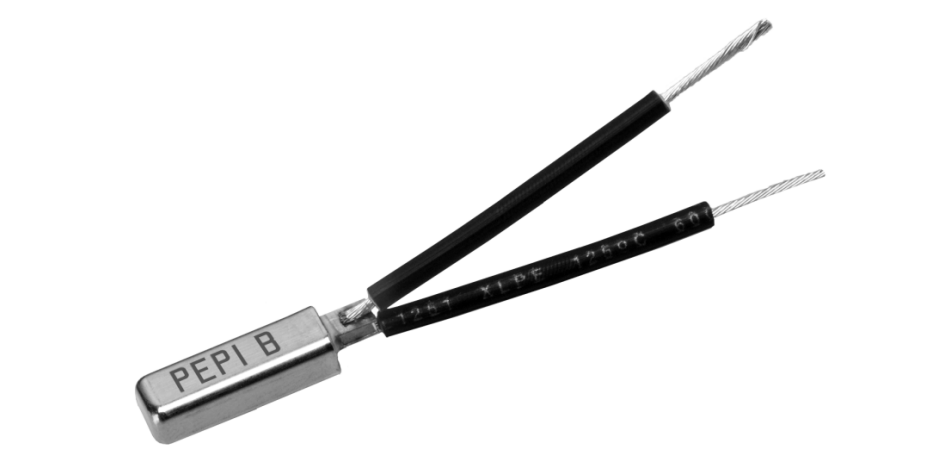

• B Series

B Series

  • Thermostat, temperature control
  • Contact form: Single pole, single throw; open on temperature rise
  • Creep action device
  • Rated load:
    3 A 12 VDC
    3 A 24 VDC
  • Calibration OFF temperature selectable from +5°C to +150°C in 1°C increments
  • Factory preset fixed calibration temperature
  • Calibration tolerance customizable from ±5 K to ±10 K
  • Differential between OFF and ON calibration temperature of 2 K to 10 K
  • Bimetal does not carry current
  • Contacts are gold plated (also usable for applications with low voltage and small current)
  • Customization of lead wire and insulation possible
  • Approvals: UL, CSA
