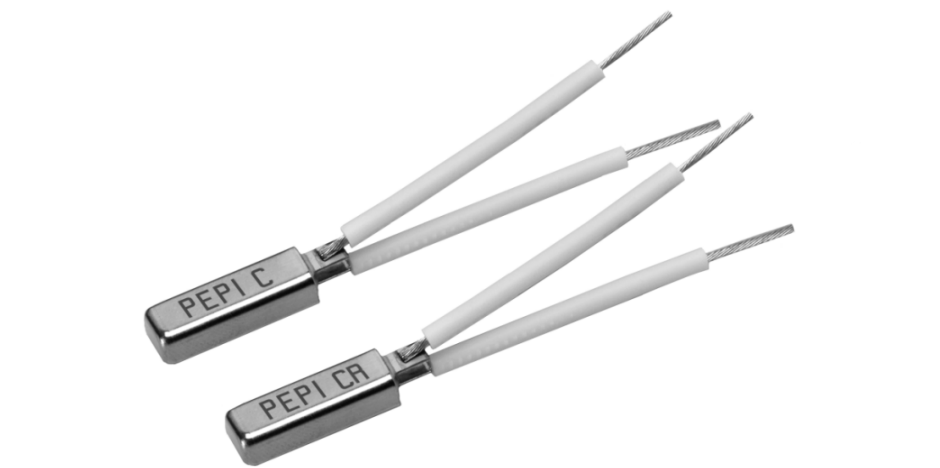

C Series

• Thermostat, temperature control
• Contact form of models C and CH: single pole, single throw; open on temperature rise
  Contact form of model CR: single pole, single throw; close on temperature rise
• Creep action device
• Rated load:
  8 A 12 VDC
  4 A 24 VDC
• Calibration OFF temperature selectable from +5°C to +200°C in 1°C increments
• No differential between OFF and ON calibration temperature, due to creep action contacts
• Bimetal carries current
• Contacts are gold plated (also usable for application with low voltage and small current)
• Customization of lead wire and insulation is possible
• Approval: UL, CSA
