• DT Series

DT Series

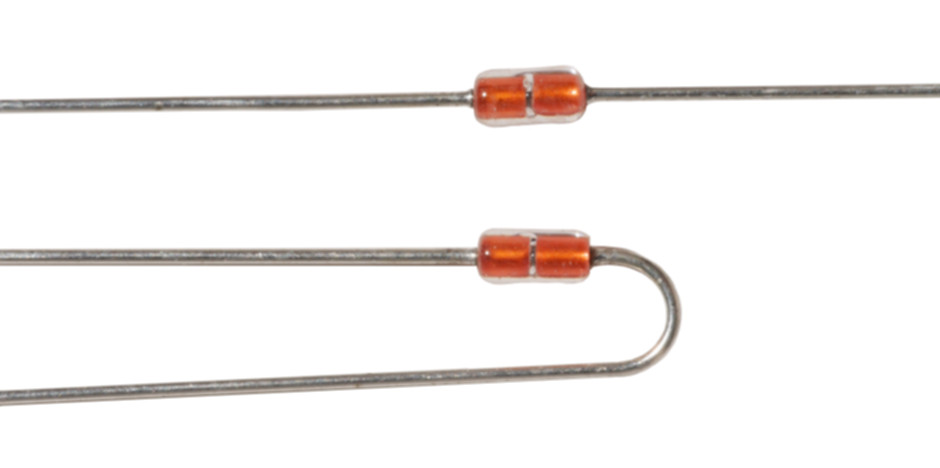

  • Glas encapsulated, axially leaded NTC thermistor with non-insulated solid wire leads

R/T Characteristic:

  • Very large portfolio of standard and customer-specific R/T curves
  • Nominal resistance R(25°C) customizable: 5 kΩ to 500 kΩ
  • B-values (25/85) depending on the R(25°C) value: 3,100 K to 5,000 K
  • Accuracy:
    Point-matched NTC with high accuracy in between ± 1{bbd499dde9524ef2df6a5e8e919f55dc4aadf745cb91d2165c90255fdca18de9} to ± 10{bbd499dde9524ef2df6a5e8e919f55dc4aadf745cb91d2165c90255fdca18de9},
    smaller tolerances possible on customer demand

Design:

  • Sensor head: DO-35 case, diameter 2 mm, length 4 mm
  • Operating temperature range: -50°C to 250°C
  • Approvals: UL approval for certain curves
