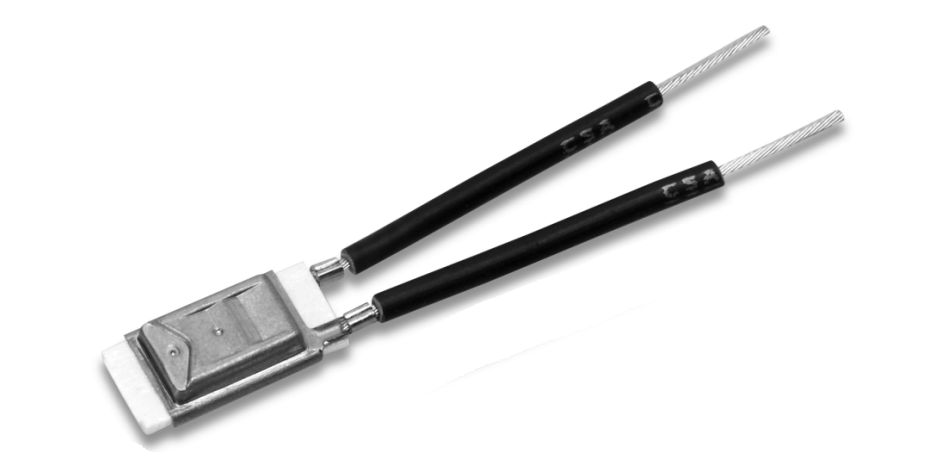

J-2 Series

  • Thermal cut-out (SOD)
    A snap action thermostat that functions like a non-resettable type control.
    This single operation thermostat performs like a thermal fuse with the reliability
    of a 100% tested bimetallic thermal control.
  • Contact form: Single pole, single throw; open on temperature rise
  • Snap action device; quick break/quick make switching action
    Rated load:
    15 A 120 VAC (resistive load)
  • Calibration OFF temperature selectable from +60°C to +160°C in 1°C increments
  • Factory preset fixed calibration temperature
  • Calibration tolerance customizable from ±5 K to ±10 K
  • Maximum sensor head temperature of +180°C
  • Bimetallic element carries the circuit current
  • Integrated crimping connectors
  • Customization of the lead wire and insulation is possible
