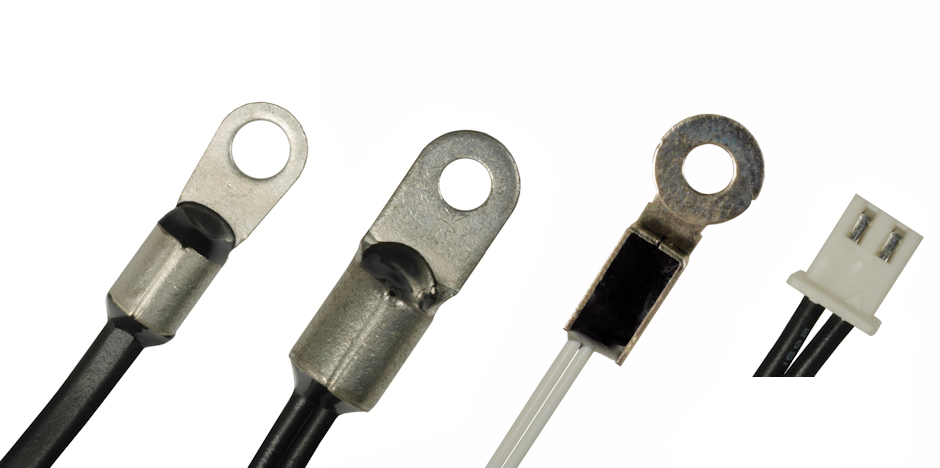

TA-5 Series

  • NTC temperature sensor with single hole mounting

R/T Characteristic:

  • Very large portfolio of standard and customer-specific R/T curves
  • Nominal resistance R(25°C) customizable: 2252 Ω to 30 kΩ
  • B-values (25/85) depending on the R(25°C) value: 3,000 K to 5,000 K
  • Accuracy: Point-matched NTC with high accuracy in between ± 1{bbd499dde9524ef2df6a5e8e919f55dc4aadf745cb91d2165c90255fdca18de9} to ± 10{bbd499dde9524ef2df6a5e8e919f55dc4aadf745cb91d2165c90255fdca18de9},
    Or
    Interchangeable NTC with very high accuracy of e.g. ± 0,1 K in between 0°C to 90°C,
    customer-specific customization of interval and accuracy possible

Design:

  • Termination: single, double or jacketed wire, available are heat shrink tubing and terminals,
    length and wire gauge are customer-specific.
  • Sensor head: Ring lug made of brass or copper, tinned or nickel-plated
  • Diameter of mounting hole between 3 mm to 8 mm
  • Insulation strength of up to 3 kV
  • Operating temperature range: Standard -30°C to 105°C, max. -50°C to 150°C
