• TA-6 Series

TA-6 Series

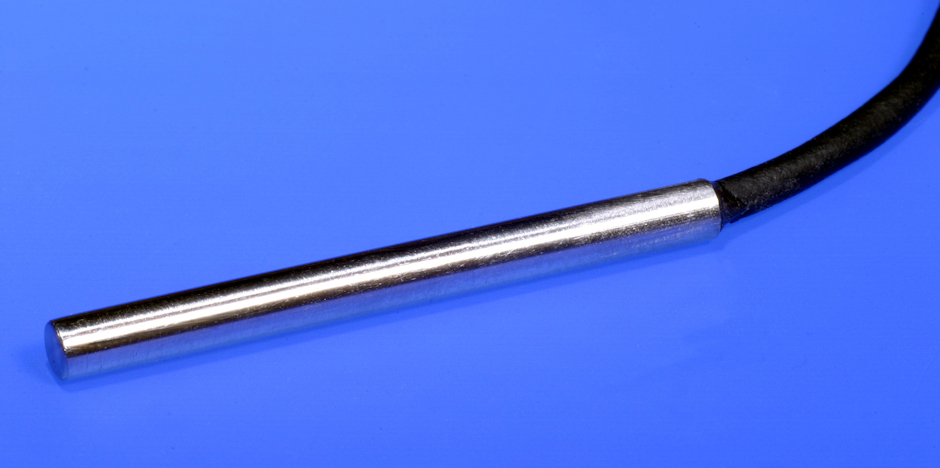

  • NTC temperature sensor completely encapsulated in a stainless steel pocket

R/T Characteristic:

  • Very large portfolio of standard and customer-specific R/T curves
  • Nominal resistance R(25°C) customizable: 5 kΩ to 500 kΩ
  • B-values (25/85) depending on the R(25°C) value: 3.100 K to 5.000 K
  • Accuracy: Point-matched NTC with high accuracy in between ± 1{bbd499dde9524ef2df6a5e8e919f55dc4aadf745cb91d2165c90255fdca18de9} to ± 10{bbd499dde9524ef2df6a5e8e919f55dc4aadf745cb91d2165c90255fdca18de9}, smaller tolerances possible on customer demand

Design:

  • Customer-specific customization of pocket length and diameter possible, e.g. Ø 2,8 mm x 30 mm, Ø 3,2 mm x 51 mm, Ø 4,0 mm x 51 mm
  • Customer-specific customization of lead wires possible, e.g. jacketed wire or single wires
