• TR Series

TR Series

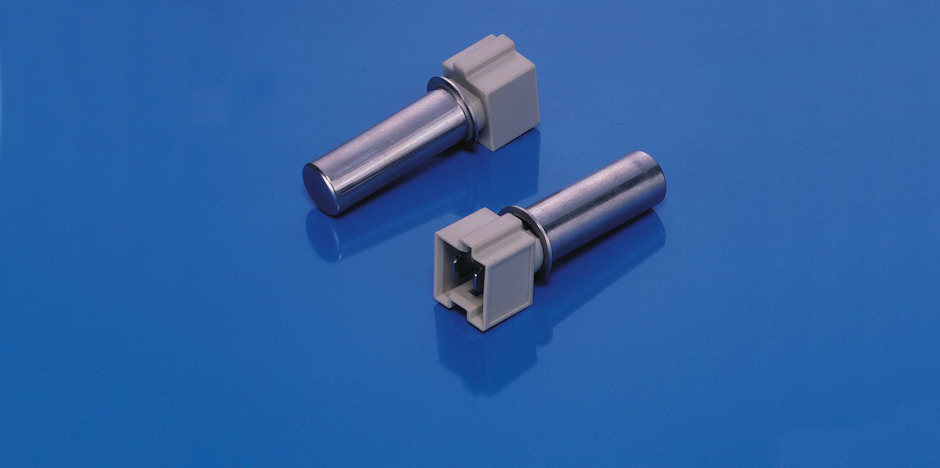

  • NTC sensor in a robust stainless steel casing with integrated RAST5 connection

R/T Characteristic:

  • Very large portfolio of standard and customer-specific R/T curves
  • Nominal resistance R(25°C) customizable: 5 kΩ to 500 kΩ
  • B-values (25/85) depending on the R(25°C) value: 3.100 K to 5.000 K
  • Point-matched NTC with a very high accuracy in between ± 1{bbd499dde9524ef2df6a5e8e919f55dc4aadf745cb91d2165c90255fdca18de9} to ± 10{bbd499dde9524ef2df6a5e8e919f55dc4aadf745cb91d2165c90255fdca18de9},
    smaller tolerances possible on customer demand

Design:

  • Stainless steel pocket
  • Rast5 connector
  • Operating temperature: -40°C to 125°C
