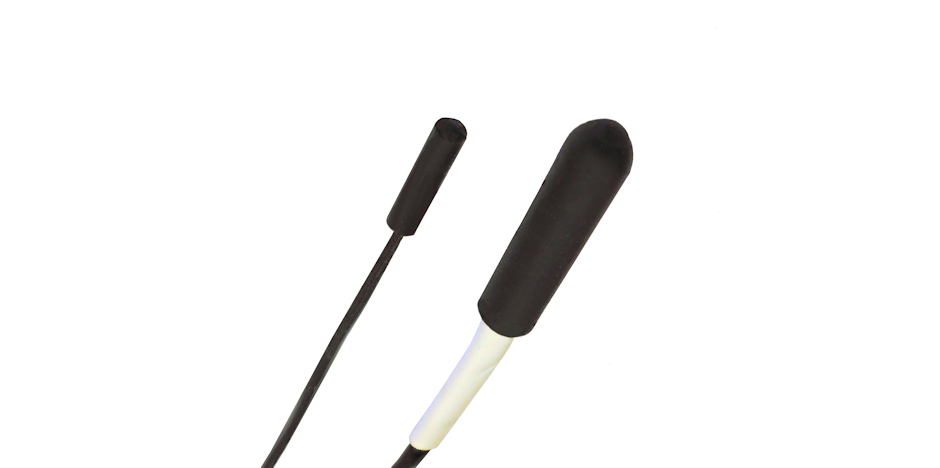

CP Series

• Injection Molded NTC Temperature Sensors IP67, IP 68 or IP69 Classified

R/T Characteristic:

• Very large portfolio of standard and customer-specific R/T-curves
• Nominal resistance R(25°C) customizable: 5 kΩ to 500 kΩ
• B-values (25/85) depending on the R(25°C) value: 3.100 K to 5.000 K
• Accuracy: Point-matched NTC with high accuracy in between ± 1% to ± 10%

Design:

• Sensor Head: TPE molded, glass encapsulated NTC thermistor
• Available Styles:


  Type	Sensor Head /[mm]		IP Classification	Operating	Lead Wire	Colour
  	Diameter	Length		Temperature Range
  CP20	2	10	IP68	-40°C to +125°C	double wire AWG 28	black, white. grey, green, etc.
  CP25	2.5	10	IP68	-40°C to +125°C	double wire AWG 28	black, white. grey, green, etc.
  CP30	3	10	IP68	-40°C to +125°C	double wire AWG 26	black, white. grey, green, etc.
  CPH30	3	10	IP68	-50°C to +150°C	double wire AWG 26	black
  CP35	3.5	10	IP68	-40°C to +125°C	double wire AWG 26	black, white. grey, green, etc.
  CP	5	20	IP68	-40°C to +125°C	double wire AWG 26, jacketed wire AWG 24	black, white. grey, green, etc.
  CPH	5	20	IP68	-50°C to +150°C	double AWG 26	black


  As an option available: all styles in IP69
• Lead wires:
  TPE insulated jacketed or double lead wire with customer-specific lengths,
  wire gauges of  AWG 28 (0,089 mm²), AWG 26 (0.14 mm²), AWG 24 (0.227 mm²) or AWG (0,354 mm²)
  are available depending on the style of the sensor head
