FC Series

  • Temperature limiter, excellent for motor and winding protection, and ballast for tubular fluorescent lamps
  • Contact form: Single pole, single throw; open or close on temperature rise
  • Snap action device; quick break/quick make switching action
  • Rated load:
    8 A 250 VAC (resistive load)
    12 A 125 VAC (resistive load)
    12 A 212 A 125 VAC (resistive load)
    12 A 24 VDC

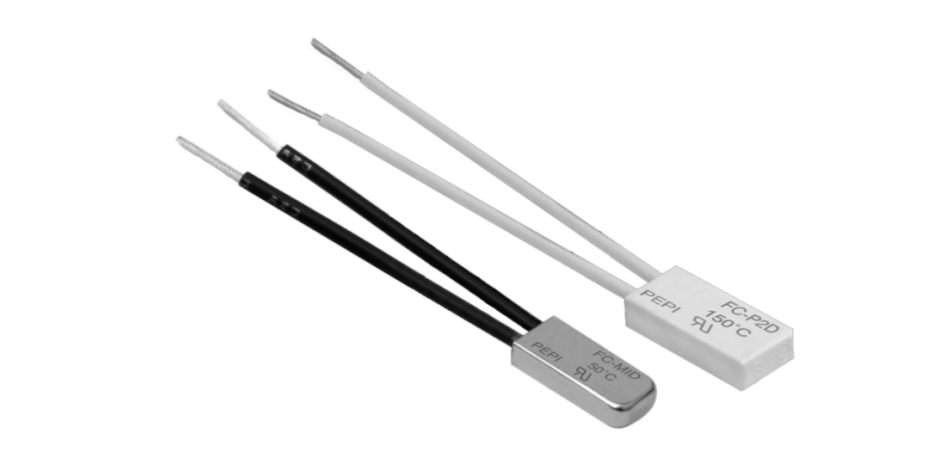

  • FC-P2D series with casing made of PBT, FC-M1D series with casing made of metal
  • Calibration OFF temperature selectable:
    From +50°C to +130°C for the FC-P2D Series
    From +50°C to +150°C for FC-M1D Series
  • Factory preset fixed calibration temperature
  • Calibration tolerance: ±3 K, ±4 K, or ±5 K (standard)
  • Differential of about 70% of the chosen calibration temperature
  • Maximum sensor head temperature of +150°C
  • Bimetallic element carries the circuit current;
    current sensitivity can be customized using the specific resistance of the bimetal
  • Electrical connectors: Gauge of stranded wire is 0,5 mm²
    with insulation XLPE (125°C, 300 V), according to UL 3266,
    or silicone (200°C, 300 V), according to UL 3135. Alternatively, a tinned copper wire without insulation can be used
  • Suitable for vacuum impregnation
  • Approvals: VDE, UL, C-UL
